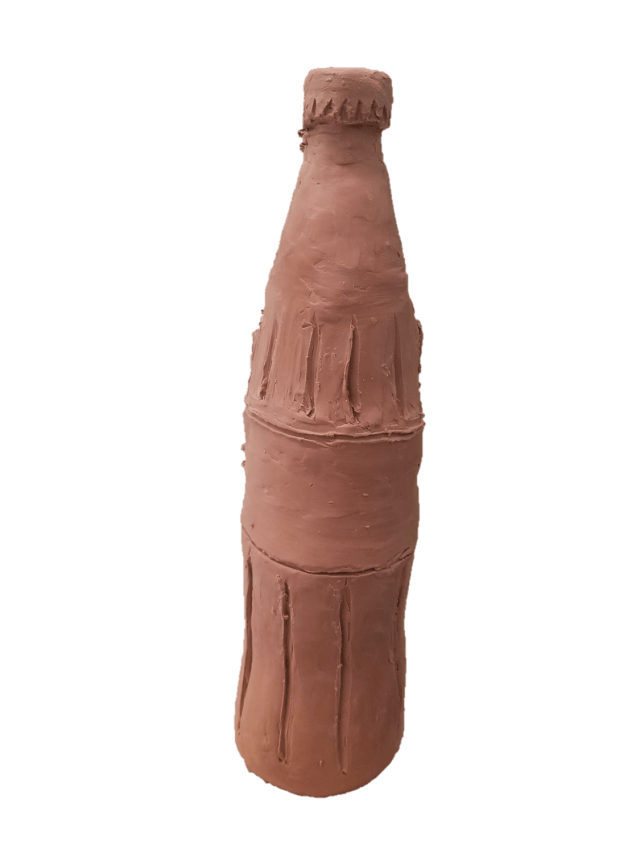

This project for DIY Design was about learning to make mockups of common products.  By downloading a .stp file from GrabCad then scaling and touching up the model I was able to create a core for the design.  Half of the design was left uncovered and half was covered in clay so that the visuals can be mocked up.

Rendering of Product



CAD Development of Mockup for Slicer

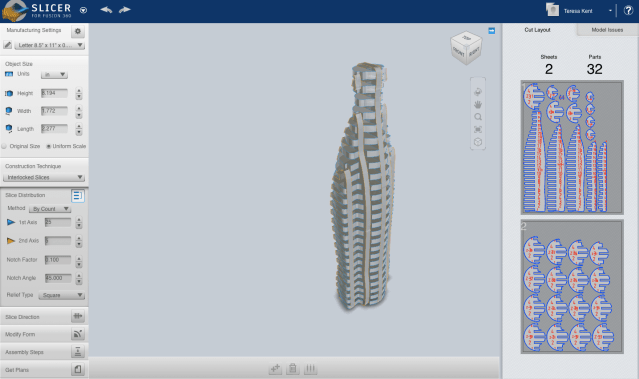

Slicer

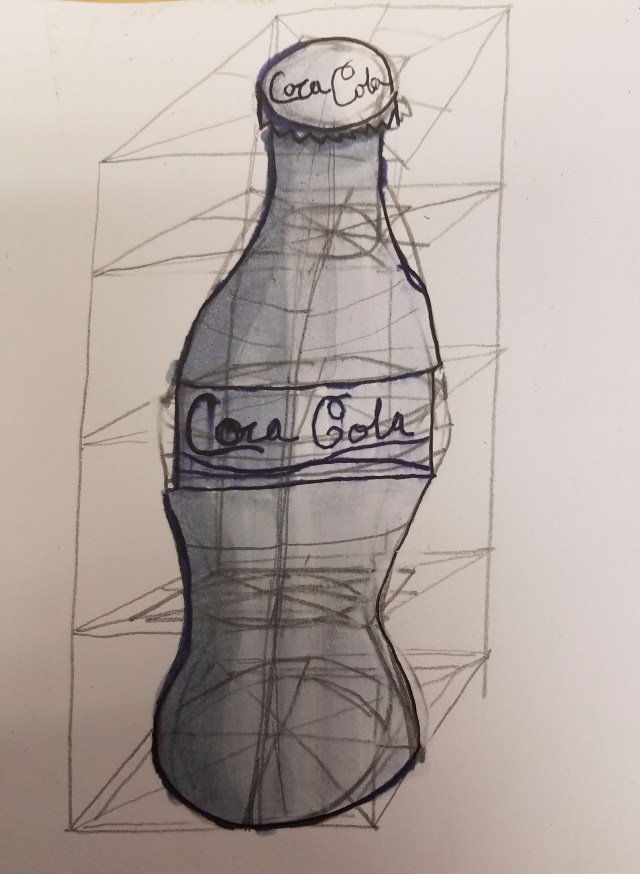

Sketches

Construction
